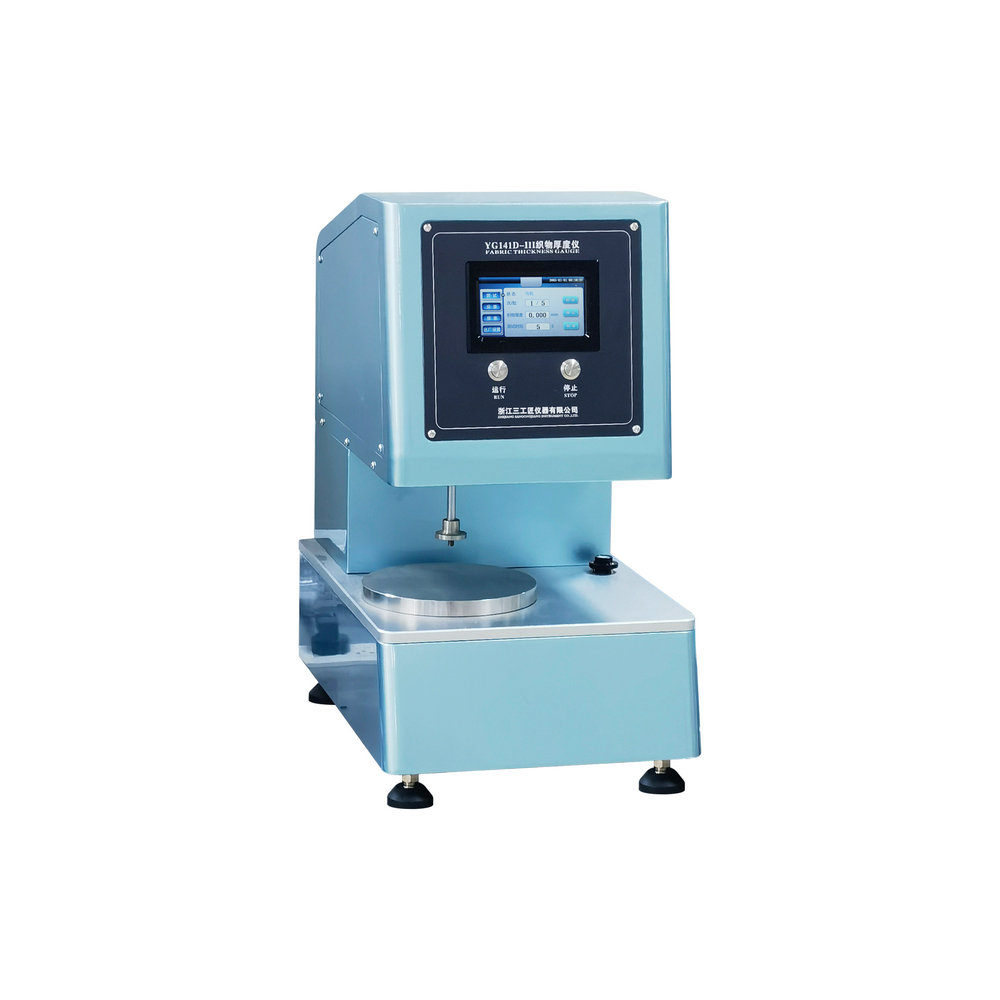

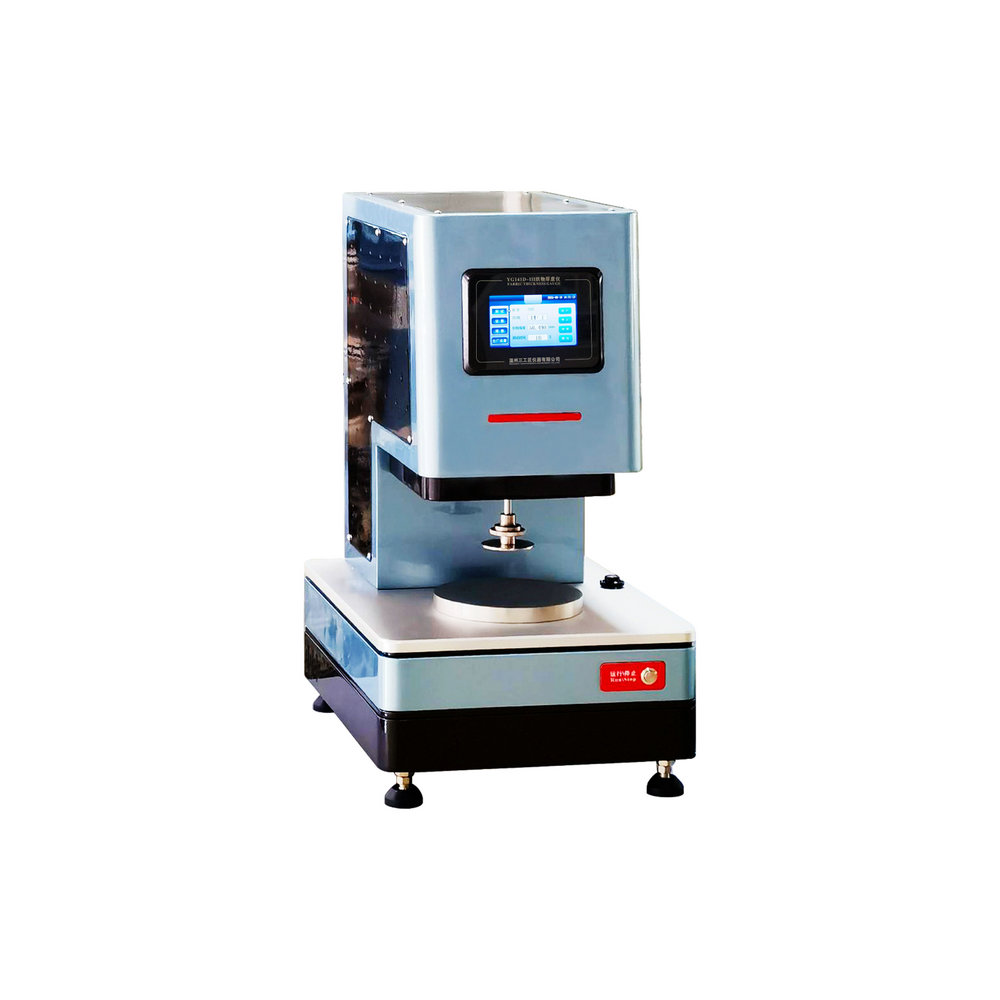

YG141D-Ⅲ Fabric Thickness Meter

• YG141D-Ⅲ Fabric Thickness Meter

  Instrument use:
    It is used to measure the thickness of various textiles, non-woven fabrics, films, papers and other materials.
  Standards compliant:
    GB/T 3820, GB/T 24218.2, FZ/T01003, ISO 5084: 1994 and other standards.
  Features:
    1. Large-screen color touch screen display and operation.
    2. The presser foot, sample table and weights are all made of 304 stainless steel, which will never rust.
    3. The imported precision dial gauge is used for measurement to ensure the accuracy of the data.
    4. The shell of the whole machine is treated with plastic spraying process.
    5. The panel is made of imported special aluminum material and metal buttons, which are sensitive to operation and not easy to damage.
    6. Driven by a precision motor, the load is stable and no jitter.
    7. The presser foot is in a balanced state when there is no force, and it can drop freely under the force.
    8. The instrument contains Chinese and English interface, which is convenient for foreign customers to investigate.
    9. The core transmission mechanism adopts imported precision guide rails.
    10. The core control components are 32-bit multi-function motherboards from STMicroelectronics.
    11. After the test is completed, it will automatically return to the position without manual operation.
    12. Supporting two functions of ordinary thickness test and compression rate test.
    13. When the compression ratio is tested, there is a function of imposing pressure prompt to improve the accuracy of operation.
    14. Two test methods of single measurement and continuous measurement are optional.
    15. Equipped with online communication function and software.
